Sealed system & compressor
Sub-Zero sealed system & compressor repair
The sealed system is the heart of a Sub-Zero — the compressor, evaporator(s), condenser and refrigerant that actually make the cold. When it fails you’ll see slow warming, heavy frost, a compressor that never rests, or a unit that simply won’t hold temperature. We never quote this work blind: we pressure- and electrically-test first, then recommend. The $89 service call is waived with the repair and labor is backed for 365 days. This is high-value work we do often on older Mountain View estate built-ins.
- Compressor, evaporator, condenser & refrigerant diagnosis
- Pressure + electrical testing before any quote
- Honest repair-vs-replace on 15–25 year-old units
$89 service call, waived with repair · 365-day warranty on all labor
What the sealed system actually is

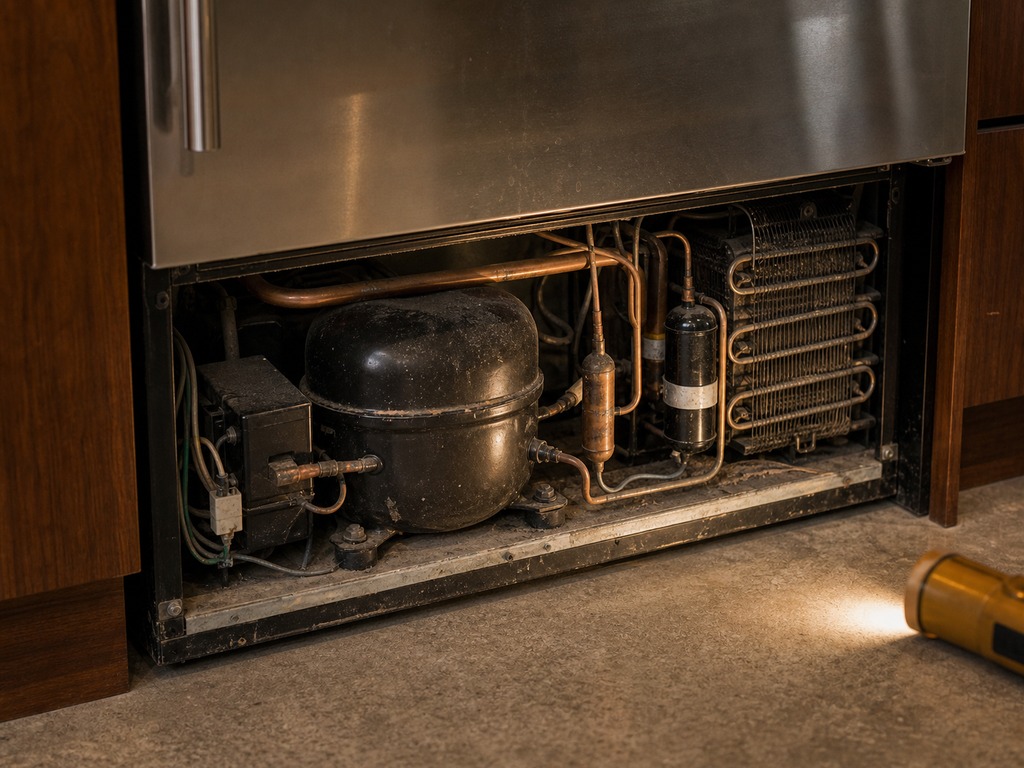

In a Sub-Zero built-in, the sealed system is a closed refrigeration loop: the compressor pumps refrigerant, the condenser coils shed heat, and one or more evaporators absorb heat inside the cabinet. Many built-ins use dual evaporators so the fresh-food and freezer zones can hold different temperatures precisely. When any part of that loop weakens, cooling drifts.
Because the loop is sealed, real diagnosis requires gauges and electrical readings — not guesswork. That’s exactly the step a generalist tends to skip.
Symptom guide
Sealed-system symptoms → likely cause → what we do
| Symptom | Likely cause | What we do |
|---|---|---|
| Slowly warming over days | Refrigerant loss or weak compressor | Gauge pressures; test compressor electrically |
| Both zones warm together | Compressor or main evaporator | Verify compressor start & evaporator function |
| Compressor loud or silent | Compressor / start components | Test windings, relay and overload |
| Heavy, fast-returning frost | Evaporator or sealed-system fault | Inspect evaporator; confirm with gauges |
| Runs constantly, never cycles | Low charge or restriction | Pressure-test for leak or restriction |
Compressor and refrigerant work is only quoted after this testing.
Do not
What not to do with a suspected sealed-system fault
- Don’t let anyone add refrigerant without first finding the leak — it masks the real problem.
- Don’t accept a compressor quote that wasn’t preceded by pressure and electrical testing.
- Don’t keep running a unit that short-cycles for days; it can stress the compressor further.
- Don’t use aftermarket “universal” compressors on a Sub-Zero — match the OEM part to the serial.
How we test
Our sealed-system diagnostic order
- 01
Confirm the basics
Rule out airflow, defrost and control faults first so we don’t over-diagnose the sealed system.
- 02

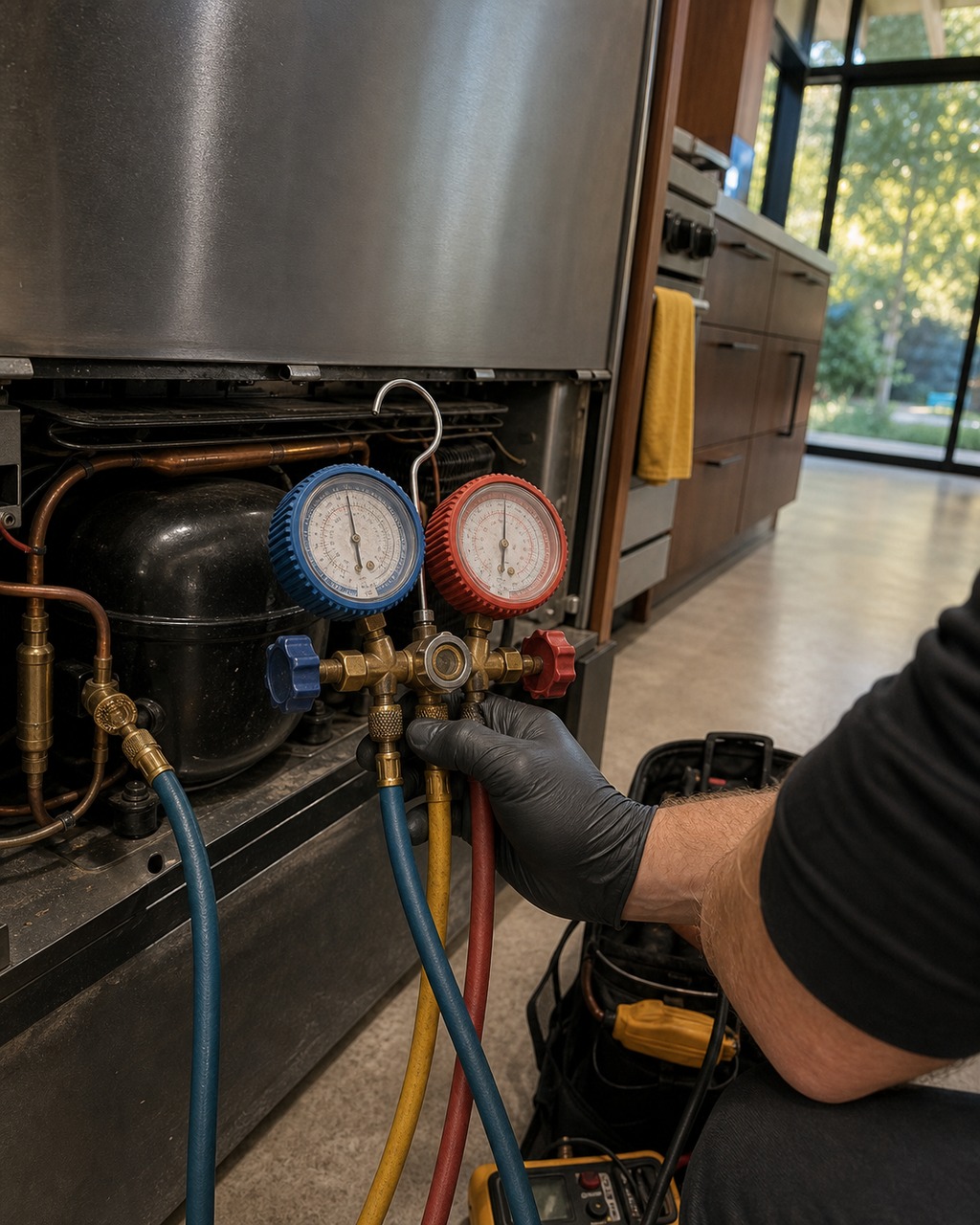

Gauge the system
Connect manifold gauges to read pressures and identify low charge, leaks or restrictions.
- 03
Test electrically
Check compressor windings, the start relay and overload to confirm the compressor’s condition.
- 04
Recommend honestly
Quote the repair with OEM parts, or advise replacement if that’s genuinely the better value.
Why it matters
What sets this work apart
Evidence-first
We confirm the fault with gauges and electrical readings before any compressor or refrigerant work.
OEM components
Genuine Sub-Zero compressors and parts matched to your exact model and serial.
365-day labor
A full year of labor warranty on sealed-system repairs — well beyond the local norm.
Why this matters on Mountain View estate units
In Cuesta Park and Waverly Park, many built-ins have been running fifteen to twenty-five years or more. At that age, sealed-system wear — a tiring compressor, a slow refrigerant loss, or a failing evaporator — becomes the leading cause of a unit that can’t keep up. The good news: Sub-Zero engineered these systems to be serviced, so a well-diagnosed repair can add years of life.
We’ll give you a straight repair-versus-replace recommendation once we know the real condition — not a default upsell.
Done to factory spec, with OEM parts
Sealed-system repair is precise work: correct evacuation, the right refrigerant charge, and OEM components matched to your model and serial. We follow manufacturer-recommended procedures and factory-spec diagnostics, and we stand behind the labor for a full year.
Pricing
Sealed-system repair ranges
| Repair | Draft range | Time |
|---|---|---|
| Sealed-system diagnosis | $180–$280 | 60–90 min |
| Refrigerant leak repair / recharge | $650–$1,600 | 2–4 h |
| Evaporator replacement | $900–$2,200 | 3–5 h |
| Compressor replacement | $1,450–$3,600 | 4–6 h + parts |
Draft ranges only; final quote follows pressure and electrical testing. $89 service call waived with repair.
Reviews
What Mountain View homeowners say
Our 23-year-old built-in was warming. They gauged and tested before saying a word about cost, confirmed the compressor, and replaced it with an OEM part. A year of labor warranty and it runs like new. Worth every dollar.
Another company wanted to add refrigerant on the spot. These folks found the actual leak, repaired it, recharged to spec, and explained everything. Honest, technical, and the $89 came off the bill.
Estate unit, expensive to replace. They diagnosed an evaporator issue, fixed it properly with OEM parts, and gave me a clear repair-versus-replace breakdown first. Genuinely trustworthy.
FAQ
Frequently asked questions
What are the signs of a Sub-Zero sealed-system problem?
Slow warming over days, both zones drifting up together, a compressor that runs constantly or won’t start, or heavy frost that returns quickly. Confirming it requires pressure and electrical testing, which is where we start.
Should I repair or replace a 20-year-old built-in?
It depends on the specific fault and the unit’s overall condition. Many older Cuesta Park and Waverly Park built-ins are worth repairing because the parts are serviceable. We’ll show you the numbers and give a straight recommendation.
Why won’t you just quote a compressor over the phone?
A compressor is one of several possible causes. Quoting it without testing risks replacing an expensive part that wasn’t the problem. We gauge and electrically test first, then quote.
Do you find and fix refrigerant leaks?
Yes. We locate the leak, repair it, evacuate properly and recharge to the correct spec — rather than just topping up refrigerant, which only delays the failure.
Are sealed-system repairs guaranteed?
Yes — a full 365-day labor warranty, with genuine OEM Sub-Zero parts. The $89 service call is waived when you approve the repair.
Can you do this in a tight Eichler galley?
Yes. We pull the unit on a board to protect mahogany panels and the cabinet, then perform the work with proper clearance and reinstall cleanly.
Suspect a sealed-system or compressor fault?
Book a proper diagnosis — we test before we quote, and the $89 is waived with the repair.
$89 service call, waived with repair · 365-day warranty on all labor
